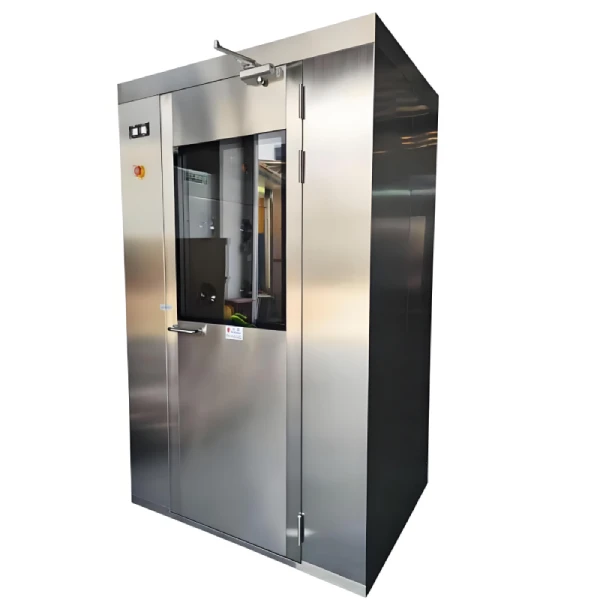

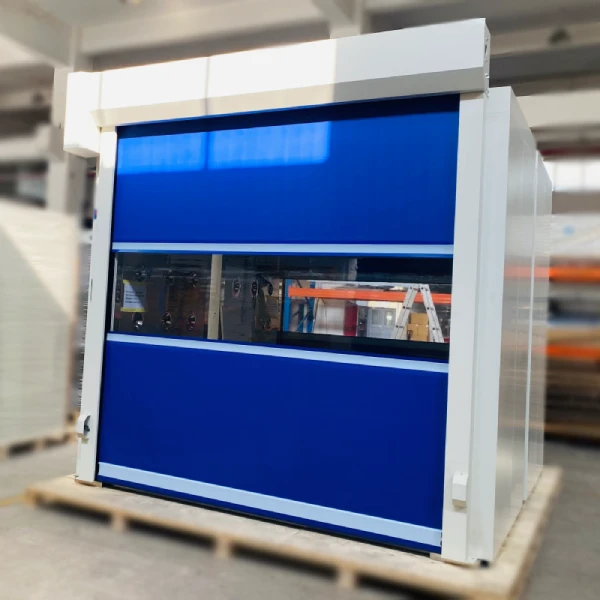

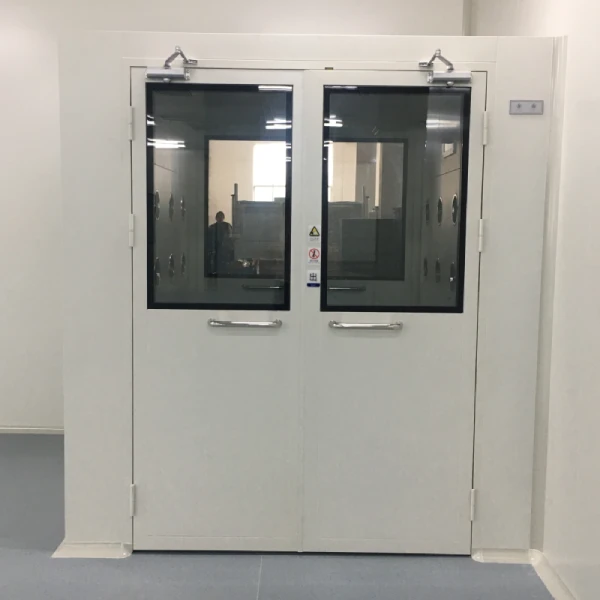

Многочисленное воздушное душевое помещение / туннель воздушного душа

Product Overview

The Multi-Person Air Shower Room is a high-capacity contamination control solution designed for simultaneous use by 2 to 6 personnel or for cleaning small cargo passing into cleanrooms. It provides a high-velocity, HEPA-filtered air stream that removes particulate contamination from work garments and material surfaces before entering controlled environments (ISO 5 to ISO 8 / Grade A to C).

This unit is ideal for facilities requiring high personnel traffic without compromising cleanroom integrity.

Key Features

• Multi-User Access
  Accommodates 2–6 persons per cycle, significantly reducing entry waiting times in high-traffic cleanrooms.

• High-Efficiency Filtration
  Оснащен Фильтры HEPA или ULPA   (≥ эффективность 99,99% при 0,3 µm или 0,1 µm) для гарантирования воздушных струй без частиц.

• Interlocked Entry & Exit Doors
  Heavy-duty magnetic or electronic interlocks prevent both doors from opening simultaneously, ensuring unidirectional airflow and maintaining room pressure.

• Optimized Nozzle Configuration
  Strategically positioned stainless steel or ABS air nozzles on both side walls and ceiling provide complete body coverage (top-to-bottom air sweeping).

• PLC Control System with HMI
  User-friendly touchscreen or keypad interface with adjustable cycle time (10–99 seconds), emergency stop, automatic cycle start, and cycle completion alarm.

• Industrial-Grade Construction
  Изготовлено из холодокатанная сталь (CRS)   с электростатическим порошковым покрытием или304 нержавеющая сталь   для долговечности и совместимости чистой комнаты.

• Energy-Saving Operation
  Low-noise blower with automatic standby mode and timer-controlled shutdown reduces power consumption between cycles.
